2011 Dodge Challenger SRT8 Inaugural Edition #0111 of 1100
**Stand out from the crowd and be the proud owner of this one of a kind unique custom built Challenger**

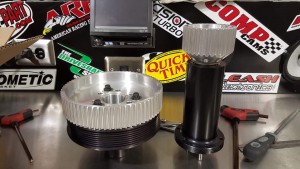

-Whipple 4.0L Supercharger head unit, Custom cast intake manifold w/intercooler, Cog Belt front drive system, comes with extra pulley sizes to modify boost levels.

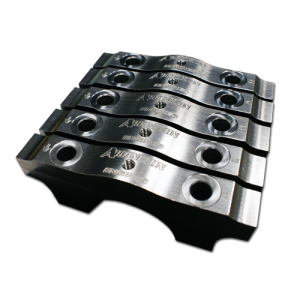

-426 Hemi short block w/Molnar crank and rods, Mahle pistons,billet main caps,Cometic head gaskets, Thitek “Bear” CNC ported cylinder heads w/big valves,dual valve springs with roller rockers, ARP head and main studs. Motor spec’d out to handle 24 psi Boost. (See below engine feature information)
-Comp Cam custom grind forced induction camshaft
-Custom fuel rails,90lb injectors,aeromotive adjustable fuel pressure regulator w/8n fuel lines, duel in tank fuel pumps 2nd pump turns on at 6psi boost.
-ATI 17% underdrive crank pully,pined.

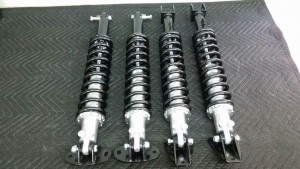

-A2speed fully adjustable front and rear coil over suspension, w/350 lb springs.
-Mopar Performance front and rear ACR sway bars.
-Kooks 2″ primary long tube headers.
-Corsa Extreme exhaust system.
-Custom 4.5″ cold air intake system.

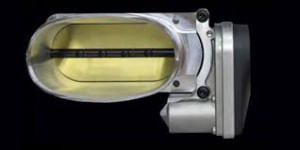

-Kenny Bell 148mm Throttle body.
-Custom lower control arms (for front coil over suspension, see picture).
-Custom front strut bar
-Dynatrac Posi rear end assy 3:73 ratio.(see picture)
-Oliver Drive shaft.
-Drive shaft loop.
-1400HP rear axles.
-Solid rear K-frame mounts, with fully adjustable upper and lower control arms.
-Boost,Fuel pressure,wide band gauge pod.
-SHR War Viking NAG1 transmission.
-Pro torque converter.
-6 point roll bar w/removable side bars and frame ties
-Mopar Drag pack drivers seat
-Mickey Thompson ET Street radials 305/35/20
-Custom “Mopar” engraved Coil covers
-Custom Cowl Hood painted body color
**See Chassis Dyno Pull Video on bgperformance website under the services tab/Chrysler tuning**
**See the Idling Video on the bgperformance website under the services tab/Hemi tuning**
** See Youtube Engine Dyno Pull testing Cog Drive System**
**See Youtube Vehicle walk around video**
**1102HP/1047TQ** (see Dyno sheet picture)
Engine Features & Benefits (See Below)
6.4L to 426 Short Block Specs
Displacement: 426 CID (7.0L)
Compression Ratio: 9.8 : 1
HEMI Rotating Assembly Components, Features, & Benefits:

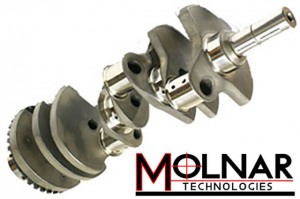

Molnar Technologies crankshafts are manufactured from 4340 forgings, machined on state of the art CNC machining centers, heat treated to increase tensile strength, shot peened to improve fatigue life, nitride treated to increase wear resistance and 100% magnaflux particle inspected to insure there are no imperfections. Molnar Technologies connecting rods are manufactured from 4340 billet steel, fully machined on state of the art CNC machining centers, heat treated to increase tensile strength, shot peened to improve fatigue life, 100% magnaflux particle inspected to insure there are no imperfections and finished machined to the tightest tolerances in the industry. Molnar Technologies rods may look like many other H-beam rods on the market but feature an exclusive beam design that puts mass only in the heaviest loaded part of the rod without adding extra weight. This results in one of the strongest rods on the market while still being one of the lightest rods available. These rods come standard with ARP rod bolts designed with a special thread profile to equally load the threads and reduce the possibility of breakage even in extreme conditions. Mahle Piston Company has provided one of the best piston designs on the market specifically designed for the late model HEMI engines. Valve reliefs are properly chamfered eliminating all thin and sharp edges of aluminum eliminating them from breaking off into engine under heat and stress. These pistons come standard with anodized Top ring grooves to prevent excessive wear and reduce piston ring friction allowing them to rotate as needed. A compact design with a special Grafal Coating ensures less wear, the ability to run tighter clearances, and resulting in quieter engines with less weight and more power.
